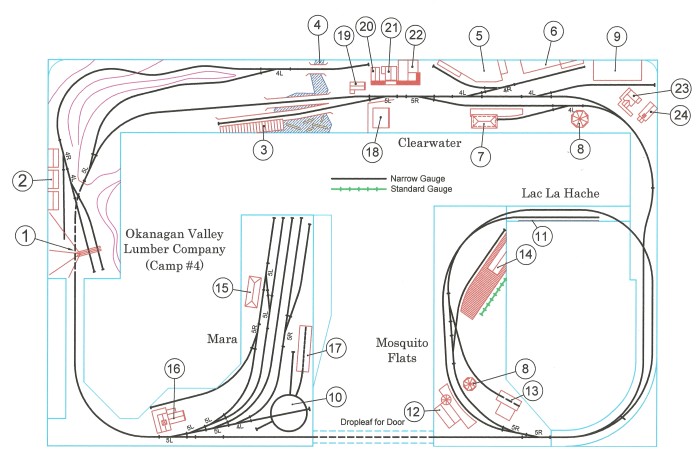

Trackplan
LEGEND
1 | Log Spur | 13 | Lyon Tractor Works |
2 | Lumber Camp | 14 | Transfer Dock |
3 | Log Dump | 15 | Mara Station |
4 | Clearwater Creek | 16 | Lacroix Hardware |
5 | Sharkbite Brewery | 17 | Mara Engine House |
6 | Thuot’s Metal Works | 18 | Elwoods Garage |
7 | Clearwater Station | 19 | Clearwater Telegraph |
8 | Water Tower | 20 | Big Lars General Store |
9 | Adams Stave and Box Co | 21 | Pool Hall |
10 | Turntable (48ft) | 22 | Creedence Saloon |
11 | Ben’s Produce | 23 | Suzie Q’s |
12 | Mosquito Flats Station | 24 | Clearwater Revival Church |
GENERAL INFORMATION
- Name: Clearwater Valley Railway Company
- Scale: On30
- Size: 19′-10″ x 10′-6″
- Prototype: None layout is freelanced
- Locale: Okanagan/Thompson Valley area of British Columbia
- Era: Late 1920’s
- Layout Type: Walkaround
- Layout Height: 48″
- Benchwork: 4″ boxed frames with 2″ rigid foam
- Roadbed: 1/8″ cork
- Trackwork: Handlaid code 70 on wooden ties
- Turnouts: Handlaid – No 5 for mainline, No. 4 for spurs
- Length on mainline: 48 ft
- Minimum Curve Radius: 24″ on the mainline
- Scenery: Rigid foam covered with latex paint and ground foam
- Backdrop construction: .060 Styrene
- Control: Digitrax DCC
